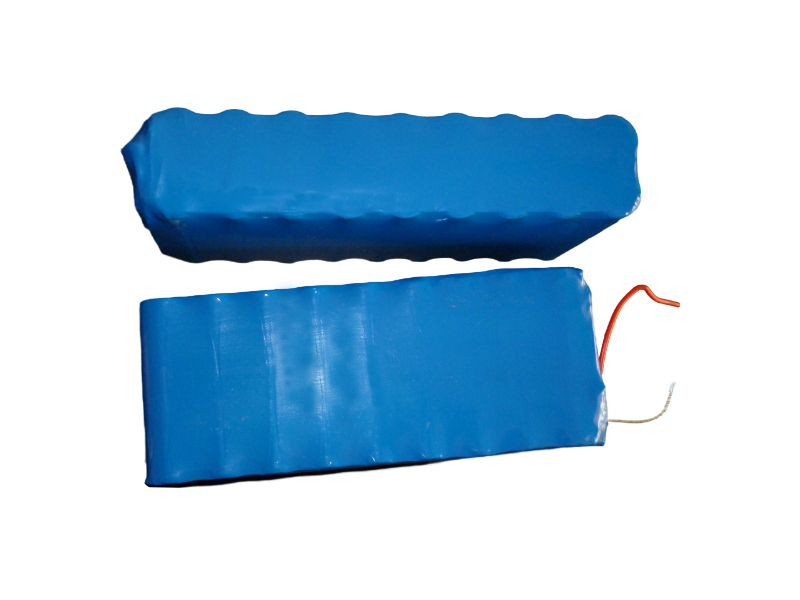

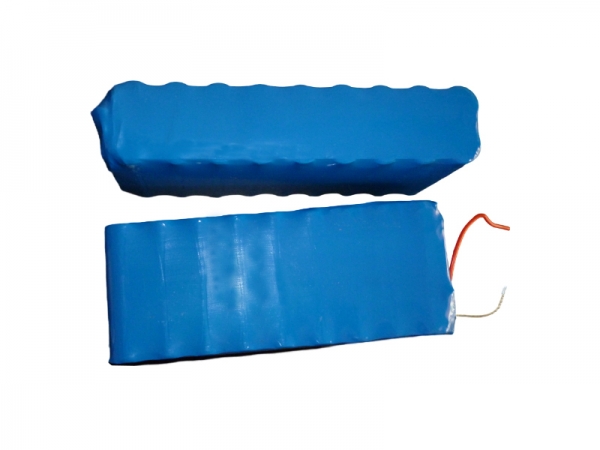

33.3V cylindrical lithium battery Product model: XL 33.3V 5200mAh
Technical parameters of 33.3V cylindrical lithium battery (specific design according to customer requirements-voltage/capacity/size/line)
Single battery model: 18650
·Single battery voltage: 3.7V
·Nominal voltage after the battery pack is assembled: 33.3V
·Single battery capacity: 2.6Ah
·Battery combination mode: 9 strings and 2 parallels
·Battery voltage range after combination: 22.5~37.8V
·Battery capacity after combination: 5.2Ah
·Battery pack power: 173.16Wh
·Battery pack size: 41*167*68mm
·Maximum discharge current: <5.2A
·Instantaneous discharge current: 10.4~15.6A
·Maximum charging current: 0.2~0.5C
·Charging and discharging times: >500 times
·Main chip: (Seiko, TI)
33.3V cylindrical lithium battery
· Conform to relevant national or international battery standards
· All battery products areπ tested before leaving theπ§ factory
