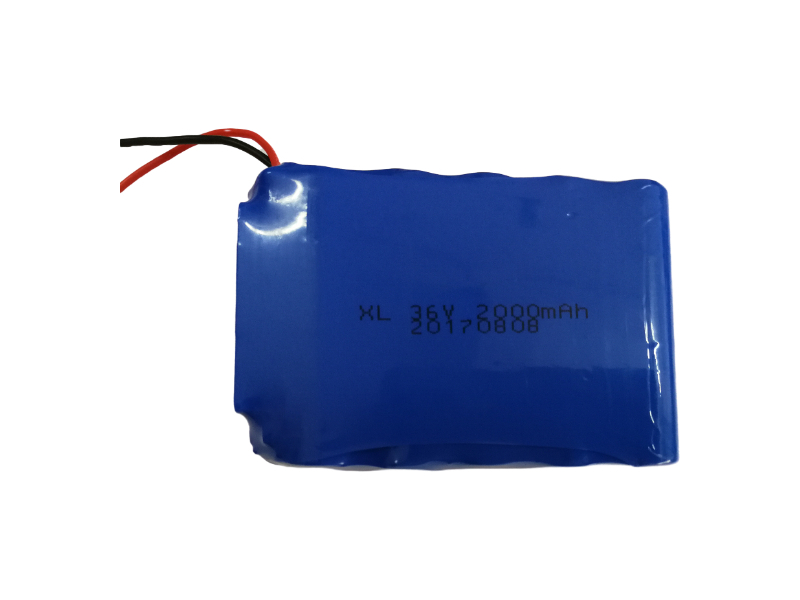

36V Cylindrical Lithium Battery Product Model: XL 36V 2000mAh
Technical parameters of 36V cylindrical lithium battery (specific design according to customer requirements-voltage/capacity/size/line)
Single battery model: 18650
·Single battery voltage: 3.6V
·Nominal voltage after the battery pack is assembled: 36V
·Single battery capacity: 2.0Ah
·Battery combination: 10 strings and 1 parallel
·Battery voltage range after combination: 25~42V
·Battery capacity after combination: 2.0Ah
·Battery pack power: 72Wh
·Battery pack size: 41*94*68mm
·Maximum discharge current: <2.0A
·Instantaneous discharge current: 4~6A
·Maximum charging current: 0.2~0.5C
·Charging and discharging times: >500 times
·Main chip: (Seiko, TI)
36V cylindrical lithium battery
· Conform to relevant national or international battery standards
· All battery products are tested b༒efore leaving the factory
